Powerful in both roll-to-roll and inline applications
Integrates directly with label finishers, applicators, dispensers, and more
The L901 combines industrial design, exceptional image quality, and high production speeds with a new ability to service and maintain the printhead “on-the-fly.” This makes the L901 perfect for long roll-to-roll print jobs or inline integration with label finishers, applicators, dispensers, and more.
Produce vibrant, full-color prints in high resolution. Large print volumes are now more economical, with five high-capacity 250ml CMYKK ink cartridges delivering an ultra-low cost per label.
Afinia l901 PLUS inkjet label printer
What is the plus model?
L901 Plus with Watershield™ Water-Resistant Inks
The Plus model offers increased water and moisture resistance.
Watershield-printed labels are significantly more resistant to the effects of prolonged moisture exposure than conventional dye-based inkjet labels. This makes the L901 Plus perfect for applications such as chilled beverages, foods, chemical or pharmaceutical products.
This new technology also produces deeper blacks, uses more responsibly-sourced inks, and helps to prolong the life of the printhead.
Water resistance can be media-dependent. Always test your printed label to be sure it meets your requirements.
Watershield™ inks do not contain chemicals that are considered to be harmful to humans or the environment.
Memjet tested ejection life internally and found an average above 2X printhead life. Actual results may vary due to factors such as environment and frequency of use.
KEY FEATURES
The L801’s combination of print quality, speed, and ink cost is tough to beat…
Ultra-low Ink Cost
Five high-capacity ink cartridges (CMYKK) offer extremely low ink cost per print, a top factor in assessing cost of ownership while choosing a printer. Learn the exact ink cost of your label design.
High Speed & High Resolution
A stationary printhead offers blazing fast print speeds of up to 60 inches (18m) per minute. Keep up with most high-volume jobs, whether in a continuous roll-to-roll setup or inline with a digital press.
Designed for Inline Applications

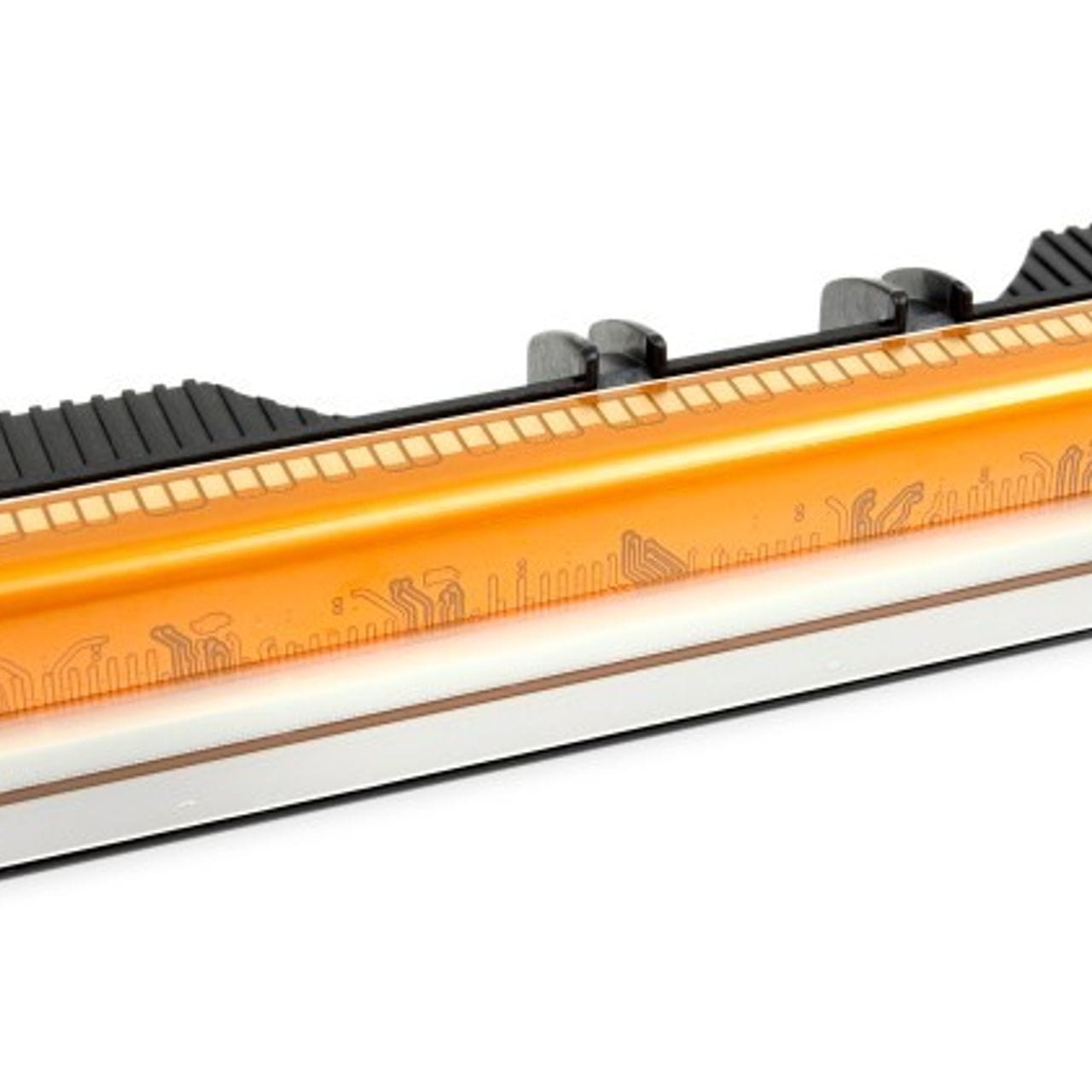

The L901’s Memjet VersaPass printhead technology allows for on-the-fly maintenance, which makes for perfect inline integration with dispensers, applicators, label finishers and high-volume digital label press configurations.
Printer | |
|---|---|
| Print method: | Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles (6,400 per IC Chip) |
| Inks: | Dye-based, 250mL CMYKK cartridges (1.25L total) — Watershield water-resistant formula available |
| Print resolution: | 1600×1600 dpi to 1600×800 dpi |
| Print speed: | 6″–12″ per second (152mm–305mm) |
| Print width: | 8.5″ (216mm) |
Media | |
| Media types: | Compatible with a range of paper, polyester, polypropylene, and vinyl label stocks |
| Media width: | 2″–9″ (50.8mm–229mm) |
| Media length: | 2″–40″ (50.8mm–1016mm) |
| Thickness: | 0.005″-0.01″ (0.13mm–0.3mm) including liner |
| Maximum roll diameter: | 10″ (250mm) with XL Unwinder/Rewinder System |
| Core diameter: | Requires 3″ (76.2mm) cardboard core |
| Media sensors: | Gap (movable), continuous, black mark |
| Die-cut label gap: | Minimum 0.125″ (3.0mm) Maximum 0.3″ (8.0mm) |
| Black mark: | 3mm wide, 25.4mm long, Left side position |
General | |
| Cutter/sheeter: | Powered |
| Interfaces: | USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control |
| Operating system: | Windows 7+ (32 and 64 bit) |
| Barcode font: | 1D Barcode at least Grade B (Code39) with 10mils bar width |
| Two-dimensional code printing: | 2D Barcode at least Grade B (PDF417) with 10mils cell size |
| Operating temperature: | 15°–35°C (59°–95°F) at RH 20–80% |
| Storage temperature: | -5°–50°C (23°–113°F) at RH up to 85%, non-condensing at 65° |
| Overall dimensions: | 18.9″ (480mm) W, 19″ (485mm) D, 21.1″ (535mm) H |
| Weight: | 85 lbs. (38.5kg) |
| Rated voltage: | AC 110V – 220V, auto-sensing |
| Rated frequency: | 50–60Hz |
| Agency Certifications | CE, FCC, UL |
| Warranty: | One year |
Label your product with THE Afinia L901 LABEL PRINTER
Roll-to-Roll Label Printing
The XL Unwinder/Rewinder system pairs perfectly with the L901 to allow for continuous, roll-to-roll label production. Easily handle rolls up to 12″ in diameter outside diameter for high-volume jobs and reduced media costs.
